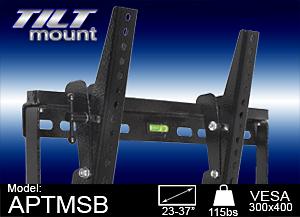

Cheetah Mounts APTMSB Plasma LCD Flat Screen TV Tilt Wall Mount Bracket for 23-37" Television

Product Description

This is a solid mount, the wall plate is 19.25" wide, allowing it to be mounted into two standard studs 16" apart. This provides a stable two stud installation for displays in the 23-37" size range. Additionally, some 32" units have bottom mounted speakers and minimal framing resulting in a "narrow" width of around 30". At a width of only 30", the wall plate of many standard mounts may be visible on the sides of the display. This mount is better concealed behind narrow 32" units. This mount will fit hole patterns up to 17.25" wide and 12.5" tall including all VESA standard hole patterns up to 400X200mm. It is made from 2mm steel and can handle displays weighing up to 115lbs. The profile is only 1.8" in the flat position yet offers up to 20 degrees of tilt. The wall plate has a built in bubble level to assist in obtaining a level installation. This mount is currently only available in black. Installation instructions and all mounting hardware are included.  We do offer some larger mounts that fill fit TV's that have a hole larger pattern.

FREE 10 FT High Quality HDMI Cable

High Quality 10 ft HDMI Cable Included Free

The mount includes a state of art 10 feet long HDMI cable . This high speed HDMI cable supports 1080P and 3D 1080P , Ethernet ready  with Audio return . The cable has 24 K Gold connectors and is double shielded with a designer braided jacket for elegant looks .

---

Features

• Heavy Gauge Steel
• Tilts up to 20°
• 1.8" slim profile
• Universal Design Fits Most 23"-37" TVs/Displays
• Free State of Art 10 Ft HDMI Cable with 24K Gold Connectors
• Supports Two 16" Stud Installation
• Safety Screws to Lock Display Once Mounted
• Installation manual and all hardware included

Specifications

Model	APTMSB
Supported VESA Patterns/Hole Pattern Coverage	17.25" Horizontal by 12.25" Vertical up to VESA 300x400mm
Unit Weight	Net: 5 LBS Gross: 6 LBS
Shipping Dimensions	20 x 6 x 2.5"
Unit Materials	Arms, Wall Plate and TV Plate: 100% High Grade Steel
Tilt Range	20° Downward
Stud Installation	16" Stud Construction
Profile From Wall	1.8"
TV Arm Dimensions	13.25" x 1.5"
Wall Plate Dimensions	19.25 x 6"
Cable Management	18.5 x 2.5"

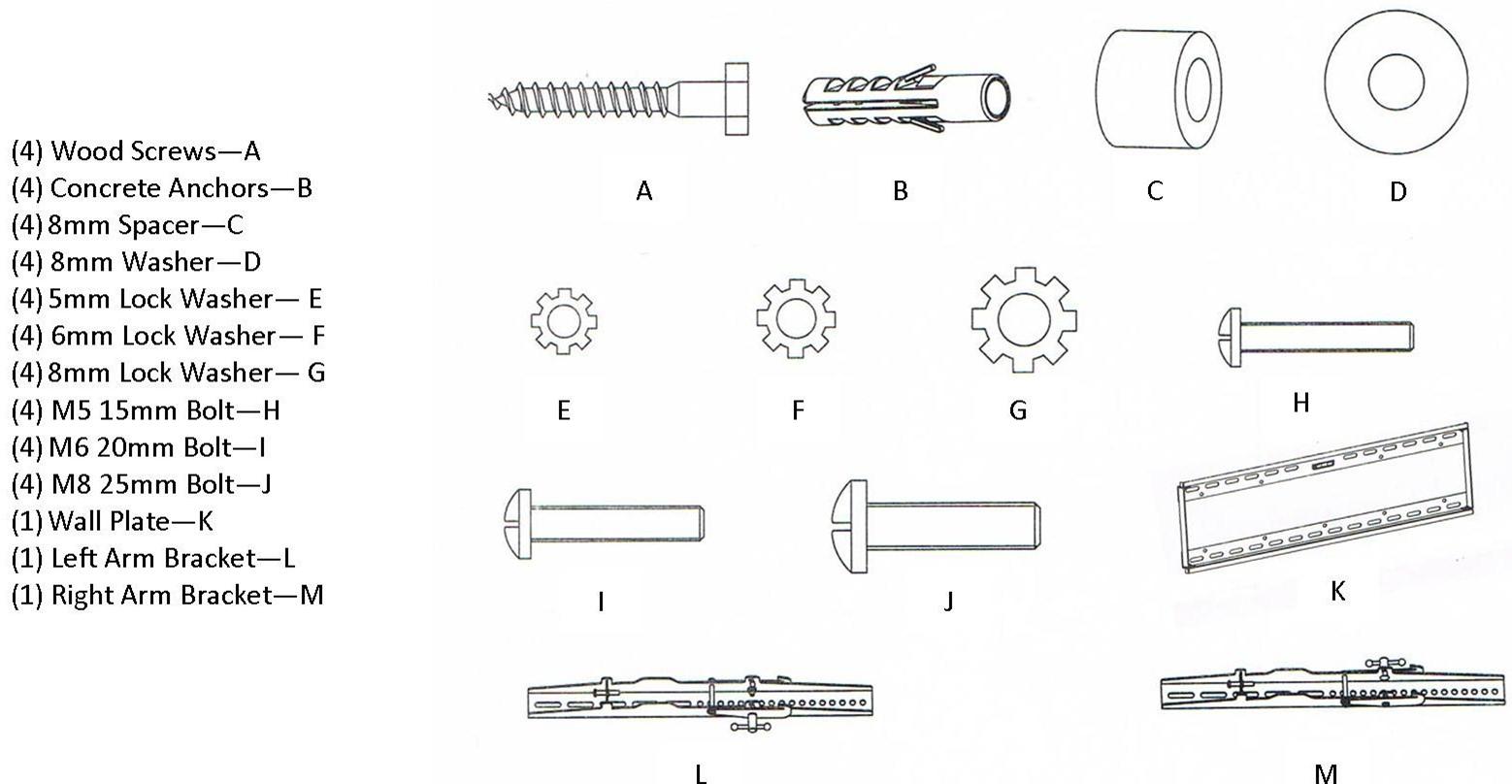

Whats in the Box

• Wall plate
• Vertical Brackets for TV
• Hardware for Wood Stud Installations
• Hardware for concrete Wall Installations
• Parts list and installation manual

Click here for complete part details

Owner Reviews, Ratings, Comments and Criticism
I just used this to mount a 32" lcd to the wall. I wanted the smaller mount for it (the one that only goes to 37") so the ends don't stick out, etc. The harware pack was complete, and everything went together very nice. The mount itself is extremely sturdy, and the metal is nice and thick too. The black finish is nice also.
